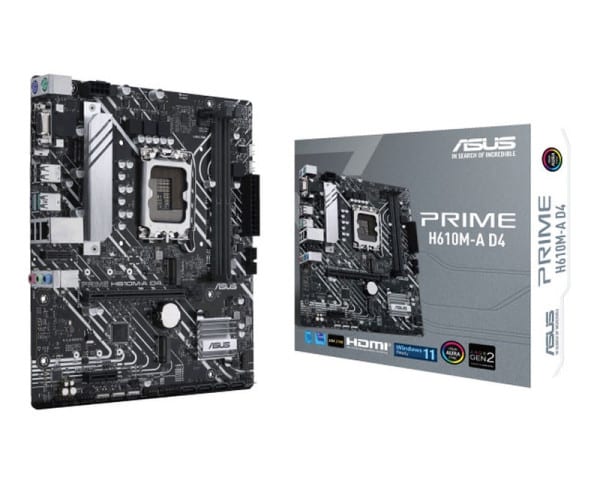

MB s1700 ASUS PRIME H610M-A D4

Intel® Socket LGA1700 for 12^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors* Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® H610 Chipset

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

1 x DisplayPort** 1 x D-Sub port 1 x HDMI^® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Intel^® 12^th Gen Processors 1 x PCIe 4.0 x16 slot Intel^® H610 Chipset 1 x PCIe 3.0 x1 slot

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel^® H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports

1 x Intel® 1Gb Ethernet

V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.

Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)  Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports


Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

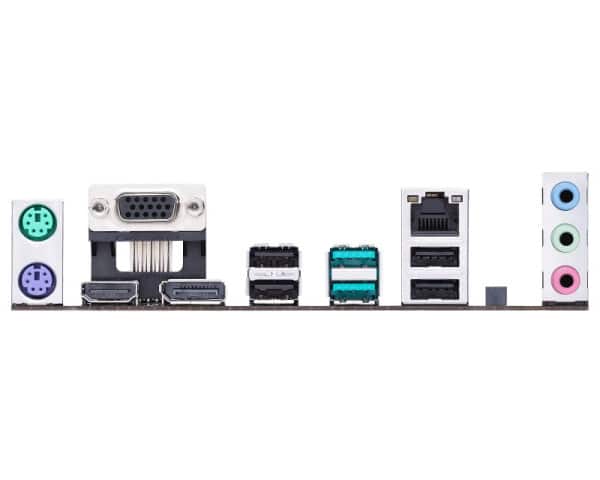

2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI^® port 1 x D-Sub port 1 x V-M.2 slot (Key E) 1 x Intel^® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port

Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – VRM heatsink design AURA Sync – AURA RGB headers – Addressable Gen 2 headers

ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 2+ AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode


128 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User guide

Windows® 11 64-bit, Windows® 10 64-bit

mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
